The GT 12 is a 12MP CMOS camera that adopts Tucsen’s innovative graphics acceleration technology, which greatly improves the USB 2.0 frame rate under the premise of ensuring the original image output. This makes the GT 12 the first choice for users wanting simple and economical microscopic imaging.

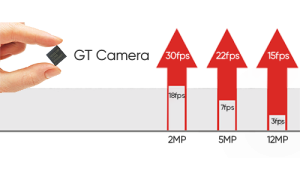

Graphics Accelerated Technology
With new graphics accelerated technology, the frame rate of the GT USB 2.0 is greatly improved whilst maintaining the fidelity of the original image output.
Professional Image Algorithms
Tucsen color algorithms fully cater to the different needs of users regarding color in biological and industrial settings, helping biological users solve the problem of color authenticity and helping industrial users to solve issues such as the strong reflection of metals.

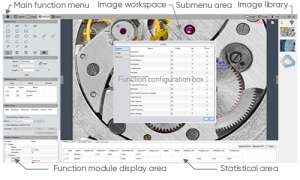

Intelligent software Mosaic V2
The Mosaic V2 Software contains four module functions of “Capture-processing-measurement-reporting” and integrates various intelligent image processing algorithms, such as automatic exposure and automatic white balance, to capture your desired image with just one click.
Specification >
Model:GT 12.0
Sensor Type:CMOS
Sensor Model:SONY IMX206CQC
Color/Mono:Color
Array Diagonal:7.77mm
Resolution:12MP, 4000(H)x3000(V)
Pixel Size:1.34 μm x 1.34 μm
Effective Area:5.4mmx4.0mm
Shutter Mode:Rolling
Frame Rate:15 fps @USB2.0
Exposure Time:1μs-1s941ms
PC Software:Mosaic V2
Picture Format:TIFF/JPG/PNG/DICOM
Multiple Cameras:Supports 4 Cameras Simultaneously in SDK
SDK:C/C++, C#, Directshow/Twain
Optical Interface:Standard C Mount
Power:2W
Dimensions:68x68x42.5mm
Camera Weight:236g
Operating System:Windows 7/10 (32 Bit/64 Bit)/Mac
PC Configuration:CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more,
