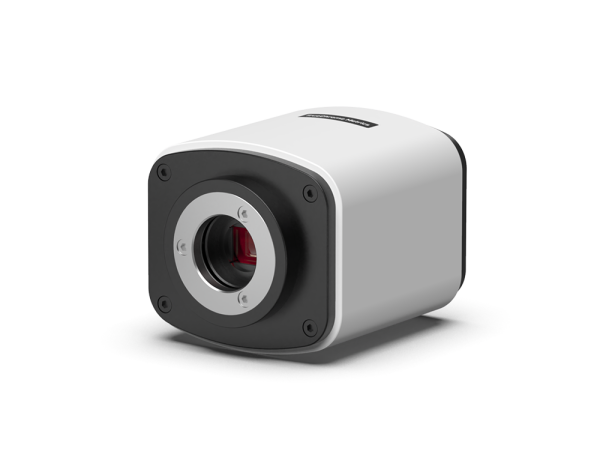

TrueChrome Metrics 1080P HDMI Microscope Camera

Description

Overview

The TrueChrome Metrics is a classic HDMI CMOS Camera with a built-in perfect color restoration algorithm, image acquisition, processing, and various measurement functions. No computer is required to operate the camera, making it extremely easy to use.

Quick capture and measurement functions

The TrueChrome Metrics provides fast image capture and processing. It has many built-in measurement tools, including freehand line, rectangle, polygon, circle, semi-circle, angle, and point-line distance. The TrueChrome AF also supports three measurement units: millimeter, centimeter, and micrometer, to meet the diverse measurement needs of users.

Perfect Color Reproduction

Tucsen’s TrueChrome Metrics camera can process colour with a completely new level of precision, resulting in extremely-high color definition, perfectly matching the monitor image to the eyepiece view.

Multi-language Settings

The TrueChrome Metrics allows free and easy switching between eight languages: English, Chinese Simplified, Traditional Chinese, German, Italian, French, Korean and Japanese.

Specification >

• Model:TrueChrome Metrics
• Sensor Type:CMOS
• Sensor Model:SONY IMX307LQR-C
• Color/Mono:Color
• Array Diagonal:6.46 mm
• Resolution:2 MP, 1920 (H) x 1080 (V)
• Pixel Size:2.9 μm x 2.9 μm
• Effective Area:5.6 mm x 3.1 mm
• Shutter Mode:Rolling
• Frame Rate:30 fps @ USB 2.0, 25 fps @ HDMI
• Exposure Time:1 ms – 10 s
• SD Format:FAT32
• Color Temperature:1800 – 10000 K
• Software:HDMI: Cloud, USB: Mosaic V2 / Mosaic V3
• HDMI Key Settings:Preview: 1920 x 1080; Capture: 3264 x 1840; Vedio recording: 25 fps@1920 x 1080
• Picture Format:HDMI: JPG/TIF; USB: TIFF/JPG/PNG/DICOM
• Multiple Cameras:Supports 4 Cameras Simultaneously in SDK
• Optical Interface:Standard C Mount
• Power:2.4 W
• Weight:265 g
• Dimensions:90.7 mm x 78 mm x 70.8 mm
• Data Interface:HDMI, USB 2.0, SD card
• Operating Environment:Temperature: -10~45℃; Humidity: 10%~85%
• Operating System:Windows 7/10 (32 Bit/64 Bit)/Mac
• PC Configuration:CPU: Intel Core i5 or better(Quad or more Core); RAM: 8G or more
